LiTHIUM BALANCE PRODUCTS
LITHIUM BALANCE SYSTEMS (BMS) offers a comprehensive range of battery management solutions, providing both customizable and ready-to-use systems designed for various lithium battery configurations.
Explore the features and technical specifications of our pre-configured solutions in the boxes below, including detailed datasheets and product presentations for each. Should you require additional information, please feel free to reach out to us; we are always at your disposal.
n3-BMS
Main Features :
- Distributed system
- ISO 26262 ASIL C Certified
- Adjustable Safety & Battery Parameters
- 6-12 voltage channels per slave
- 360 cells in series
- 2 temp. channel per slave
- Up to 1000 V
- Up to 2000 A
- Creator configuration software
n-BMS
Main Features :
- Distributed system
- 12 voltage channels per slave
- 384 cells in series
- 4/12 temp. channel per slave
- 12 – 1000 V
- 2 CAN channels
- Creator configuration software
c-BMS
Main Features :
- Integrated system
- Up to 24 voltage channels
- 12 – 100 V, 1000 A
- 1 CAN channel
- Creator configuration software

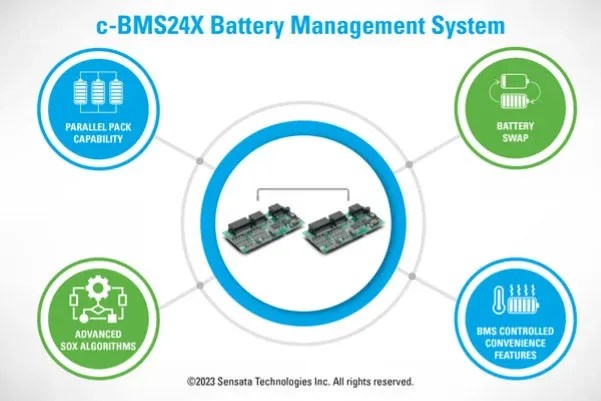

c-BMS24X
Main Features :
- Integrated system
- Up to 24 voltage channels
- 12 – 100 V, 2000 A
- 6 temperature channels
- Extended software functionality
- Creator configuration software

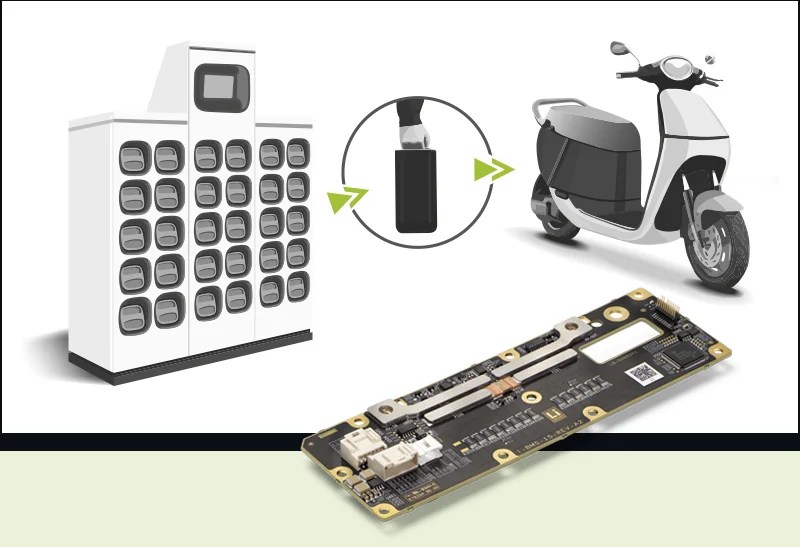

i-BMS
Main Features :
- Integrated system
- Up to 15 voltage channels
- 6 temperature channels
- 17 – 60V
- Parallel pack functionality
- Battery components integrated on-board
- creator configuration software
